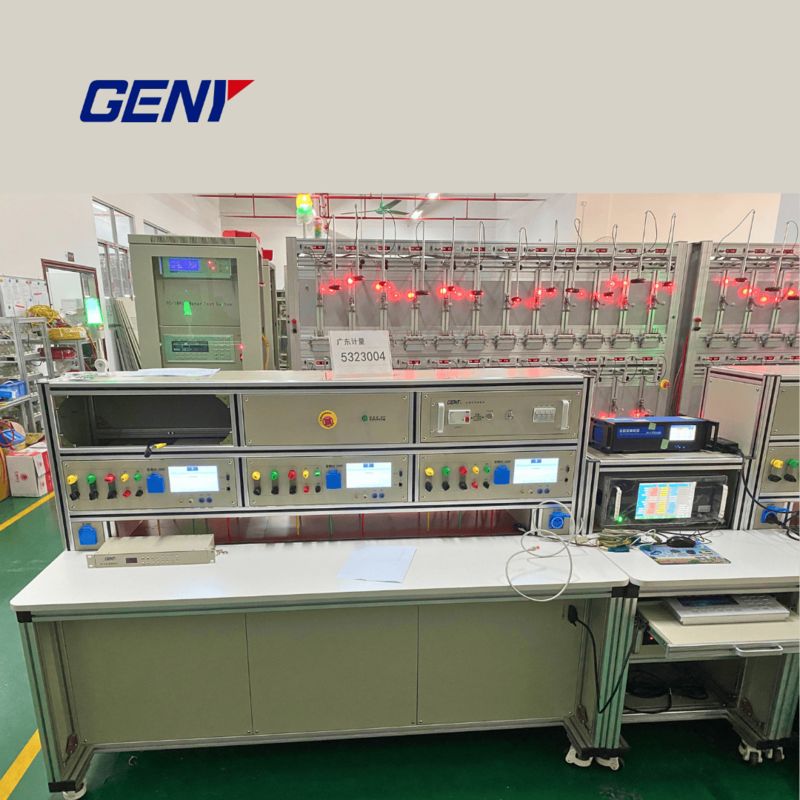

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

Marchio:	GENY
Numero di modello:	YC1893R
MOQ:	1 pezzi
prezzo:	Negoziabile
Condizioni di pagamento:	L/C,T/T
Capacità di approvvigionamento:	30 pc al mese

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Cina

Certificazione:

ISO, CE

Voltaggio:

3 × 240 ± 15%

Frequenza:

50 Hz ± 15%

Capacità di potenza:

> 6 kVA

Efficienza energetica (a pieno carico):

≥85%

Temperatura ambiente:

-10 °C -- +40 °C

Umidità relativa:

35% - 85%

Imballaggi particolari:

Cassa di legno della piega

Capacità di alimentazione:

30 pc al mese

Evidenziare:

three-phase meter test system

stationary meter test equipment with ICTs

accuracy class meter test system

Descrizione di prodotto

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

Product Specifications

Attribute	Value
Voltage	3×240±15%
Frequency	50 Hz ±15%
Power capacity	> 6 kVA
Power efficient (at full load)	≥85%
Ambient temperature	-10 °C -- +40 °C
Relative humidity	35% -- 85%

Technical Specifications

The test bench is multiple positions up to 3 meters, 0.02% of accuracy class Three-phase Meter Test System with ICTs, with multiple serial port communication system for parallel communication for testing of smart meters.

Power Source

Voltage
Test voltage output (Phase-Neutral)	3×(24 V - 480 V) or 600 V F-F customized
Power of the voltage output	3×100VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Current
Test current output	0.3 mA - 120 A
Power of the current output	3×150VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable
