Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Marchio: GENY
Numero di modello: YC1893D
MOQ: 1 pezzi
Prezzo: Negoziabile
Condizioni di pagamento: L/c, t/t, d/p
Capacità di approvvigionamento: 30 pezzi al mese
Informazione dettagliata
Luogo di origine:
Cina
Certificazione:
ISO, CE
Test Output della corrente:
3 × (0,3mA 20A)
Potenza dell'output corrente:
3 × 1500VA
Potenza della tensione di uscita:
3 × 1000VA
Gamma di frequenza:
45 Hz 65 Hz
Impostazione della precisione:
Migliore dello 0,05% al valore finale dell'intervallo
Stabilità:
Migliore dello 0,005%/h (tempo di integrazione 150 s)
Imballaggi particolari:
Caso in compensato
Capacità di alimentazione:
30 pezzi al mese
Evidenziare:

24-Meter Positions Energy Meter Test Bench

,

60° Bevel Structure Stationary Meter Test Bench

,

0.05% Setting Accuracy Three-Phase Energy Meter Verification Bench

Descrizione di prodotto

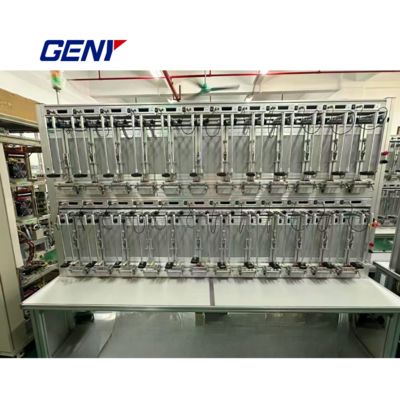

Customizable Three-Phase Energy Meter Verification Bench Customized Part 1. Automatic Suspension Test Rack Three-phase 24-meter positions distributed on two sets of meter racks Each rack has two rows arranged on one side with 6 positions per row Equipped with rotatable mechanism Suspension rack adopts 60° bevel structure (adjustable angle) relative to horizontal plane Complete protection against direct and indirect electric shocks Three-color indicator light on top of each
