YC1893D Series Automatic Meter Test System

YC1893D Series Automatic Meter Test System

Marchio:	GENY
Numero di modello:	YC-1893D
MOQ:	1
prezzo:	negotiate rates
Condizioni di pagamento:	T/T, L/C, D/P, T/T.
Capacità di approvvigionamento:	10 set/1 mese

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Cina

Certificazione:

ISO, CE

Documento:

Three-phase meter test syst...em.pdf

Struttura:

Tutto in uno

Stabilità:

Migliore dello 0,005%/h (tempo di integrazione 150 s)

Voltaggio:

3x230 / 400 V ±10%, 50 / 60 Hz ±2 Hz Frequenza 50 Hz ±15%

Eutput di tensione di prova (neutro in fase):

3x(24 – 300 V)

Risoluzione:

Meglio dello 0,01% del valore su vasta scala dell'intervallo

Impostazione della precisione:

Migliore dello 0,05% al valore finale dell'intervallo

Imballaggi particolari:

Casi di compensato

Capacità di alimentazione:

10 set/1 mese

Evidenziare:

automatic meter test system YC1893D

stationary meter test equipment

YC1893D series meter testing

Descrizione di prodotto

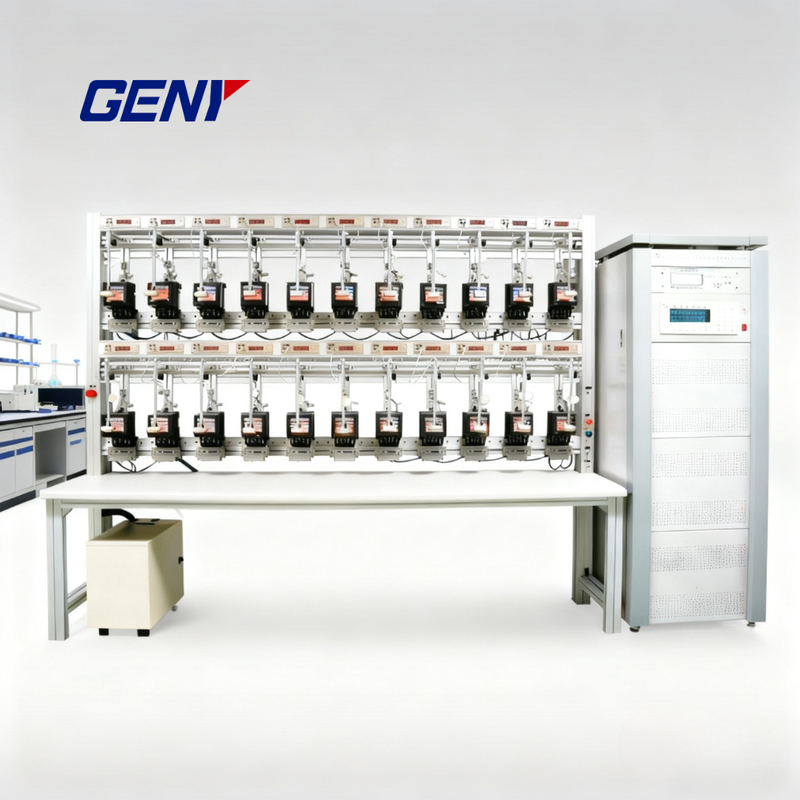

YC1893D Series Automatic Meter Test System

The YC1893D Series Meter Test System is a fully automatic, high-precision three-phase energy meter testing solution. It is fully compliant with IEC 60736 and supports testing in accordance with IEC 62052-11, IEC 62053-11/21/22/23/24, IEC 62056, EN 50470-1/2/3, and IEC 61010 standards. Designed for utility companies, meter manufacturers, and metrology laboratories, the YC1893D offers accurate, stable, and efficient calibration and verification of electric energy meters.

Key Capabilities

Fully automatic, semi-automatic, or manual testing of mechanical, electromechanical, and electronic energy meters
Supports 3P4W, 3P3W, and 1P2W meter connections
Active power, reactive power, and cross-connected reactive power testing
Simultaneous testing of meters with different constants
Automatic rotor mark positioning for mechanical meters; includes starting and creeping tests
Optional neutral current testing and closed-link three-phase testing (I-P links)
Comprehensive protection against overload, short circuit, and open current; synchronized scanning heads for easy control
Windows®-based software for error, harmonic, demand, and influence tests; compatible with Windows 2000/XP/7/8/10

Key Features

Supports multiple meter types: Measures mechanical, electromechanical, and electronic meters via automatic, semi-automatic, or manual operation
Durable and lightweight structure: Made of aluminum alloy, strong, corrosion-resistant, and easy to handle
Automatic rotor mark positioning: Increases efficiency for mechanical meter testing
Synchronized scanning heads: Simplifies control and improves alignment accuracy
Comprehensive automatic tests: Includes accuracy, repeatability, creep, starting current, dial/register, meter constant, influence quantity (voltage, unbalance, frequency, harmonic distortion, reverse phase), pre-warming, dips/interruptions, sub/odd harmonics, and tampered single-phase meter testing
Simultaneous measurement: Tests meters with different constants at the same time
Safety protection: Built-in protection for overload, short voltage circuits, and open current circuits
IEC-compliant harmonic testing: Sub and odd harmonics tests follow IEC standards
