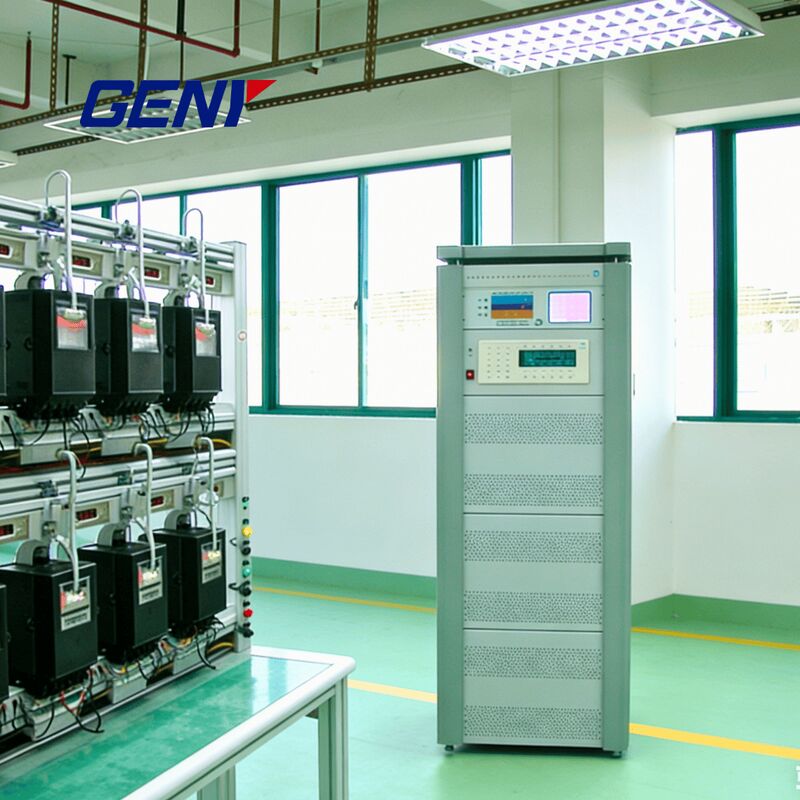

YCS-103 Three-Phase Power Source for Energy Meter Testing

Marchio:	GENY
Numero di modello:	YCSS-103
MOQ:	1
prezzo:	negotiate rates
Condizioni di pagamento:	T/T, L/C, D/P, T/T.
Capacità di approvvigionamento:	10 pezzi/ 1 mese

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Cina

Certificazione:

ISO, CE

Documento:

Catalogue——Meter Test S...m..pdf

Precisione dell'impostazione:

Migliore dello 0,05% al valore finale dell'intervallo

Stabilità:

Migliore dello 0,005%/h (tempo di integrazione 150 s）

Fattore di distorsione:

Meglio dello 0,3% per il carico di resistenza lineare

Armoniche:

2° 21° programmabile liberamente

Fornitura di tensione:

3×220/380V±10% o personalizzato 50/60Hz±2Hz

Test Output della corrente:

3 × ((1mA 100A)

Imballaggi particolari:

Casi di compensato

Capacità di alimentazione:

10 pezzi/ 1 mese

Evidenziare:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

Descrizione di prodotto

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards
