Three-Phase Energy Meter Test Bench – High Precision & Automatic

Three-Phase Energy Meter Test Bench – High Precision & Automatic

Marchio: GENY
Numero di modello: YC-1893D-ICT
MOQ: 1 pz
prezzo: Negoziabile
Condizioni di pagamento: L/C,T/T,D/P
Capacità di approvvigionamento: 100/anno
Informazione dettagliata
Luogo di origine:
Cina
Certificazione:
ISO, CE
Potenza di corrente in uscita:
2800VA (max)
Potenza di tensione di uscita:
2000VA (max)
Risoluzione:
Meglio dello 0,01% del valore su vasta scala dell'intervallo
Precisione dell'impostazione:
Migliore dello 0,05% al ​​valore dell'intervallo finale Stabilità
Stabilità:
Meglio dello 0,005% /h (tempo di integrazione 150S)
Imballaggi particolari:
Custodia in compensato
Capacità di alimentazione:
100/anno
Evidenziare:

three-phase energy meter test bench

,

high precision meter test bench

,

automatic stationary meter test bench

Descrizione di prodotto

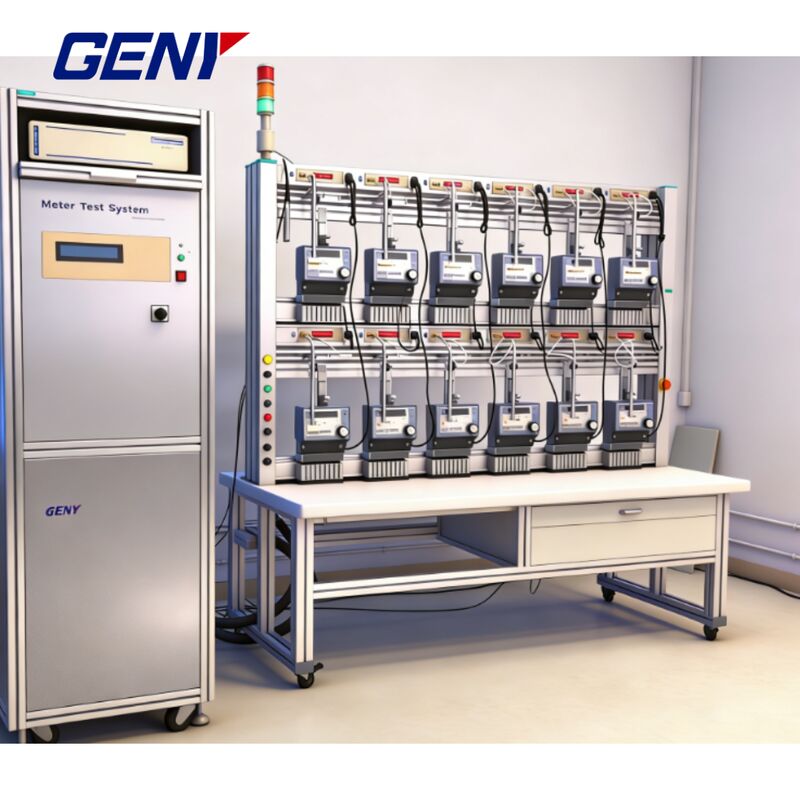

Three-Phase Energy Meter Test Bench – High Precision & Automatic

Our Three Phase Electric Energy Meter Test Bench is a high-precision, reliable, and user-friendly solution designed for accurate testing and calibration of various types of electricity meters. It is widely used by power utilities, metrology institutes, and energy meter manufacturers worldwide.

Key Features of the Energy Meter Testing System
  • ICT installed at each meter position, allowing simultaneous testing of three-phase energy meters with closed current and voltage circuits (I-P links)
  • Supports mechanical meters, electromechanical meters, and electronic energy meters, with flexible automatic, semi-automatic, and manual operation modes
  • Compatible with multiple wiring configurations: 3P4W, 3P3W, and 1P2W energy meters
  • Multiple testing modes including active energy testing, reactive energy testing, and cross-connected reactive energy testing
  • Capable of testing meters with the same specifications but different meter constants at the same time, improving laboratory efficiency
  • Automatic disc mark positioning for mechanical meters, greatly enhancing testing speed and repeatability
  • Supports starting current test and creeping test, fully compliant with international standards
  • Comprehensive safety protection including overload protection, short voltage circuit protection, and open current circuit protection, ensuring safe operation
  • Synchronized swinging scanning heads simplify control and reduce operator workload
  • Made of high-strength aluminum alloy, lightweight, durable, and corrosion-resistant, suitable for long-term industrial use
  • Powerful and intuitive energy meter testing software, compatible with Windows 2000 / XP / 7 / 8 / 10, supporting:
    • Accuracy (error) testing
    • Harmonic testing
    • Demand testing
    • Influence testing (voltage, frequency, harmonics, etc.)
Why Choose Our Energy Meter Test Bench
  • High accuracy class up to 0.05, ensuring reliable and repeatable test results
  • Available in 3 to 48 meter positions, suitable for small labs and large-scale production lines
  • Extremely stable power source, guaranteeing precise measurement under all test conditions
  • Supports timing (clock) error testing for smart meters
  • Comprehensive influence testing of voltage, frequency, and harmonics, meeting IEC and international standards
  • Each meter position equipped with RS232 and Ethernet communication ports for smart meter testing
  • Optional tilt and impact test, ideal for quality control and certification testing
  • Over 18 months warranty, providing long-term confidence and reduced maintenance cost
